Accurate Compass readings?

[myfs_161790]

We are planning to purchase a brand new apartment, the building is still under construction.  I have already tried all kind of compasses, including luopan, but have got all different results; it looks like like the compasses go crazy.  Just for a record, I'm not a novice to using a compass.  Mind you, most of the compass readings show NW more or less, but very inconsistent): sometimes it's NW1 (pearl string in period 8), then it's either NW2 or NW3.  What's going on, please?  What would be your advice in this case, please?

[Cecil Lee]

7 hours ago, myfs_161790 said:

We are planning to purchase a brand new apartment, the building is still under construction.  I have already tried all kind of compasses, including luopan, but have got all different results; it looks like like the compasses go crazy.  Just for a record, I'm not a novice to using a compass.  Mind you, most of the compass readings show NW more or less, but very inconsistent): sometimes it's NW1 (pearl string in period 8), then it's either NW2 or NW3.  What's going on, please?  What would be your advice in this case, please?

These are some considerations:

1. I have checked your profile and understand that you are from Canada.

2. Please take note that all modern buildings do have "metal" embedded in them. Even if it is a wooden home; there are nails and even metal plate joints.

3. And in many colder countries; where there are floor heating; some developments choose to use piping to heat up the floor.

4. For a home that uses concrete or bricks; the builders often use re-enforced steel bars to strengthen the building or home.

5. Modern skyscrapers also use lots of steel in their construction.

6. Thus all these metal are not friendly to a compass.

7. In my opinion, this is why your compass goes haywire most of the time.

8. Sometimes even when we stand on a patch of grass; inadvertently, if some metal is buried into the near-by ground; and if one were to use a compass needle may also be deflected towards or away depending on the polarity of the metal in the ground or pillar.

9. One tried and tested method in the past was and still is to find some VIRGIN ground nearby to the home and take the readings. For example do try to face exactly where the home is aligned towards etc..

10. One can also get a copy of the street directory in your city and location of your home.

10.1. Please note that ALL street directories all over the world uses the same convention: North or 0/360 is exactly at the top and South or 180 degrees is at the bottom.

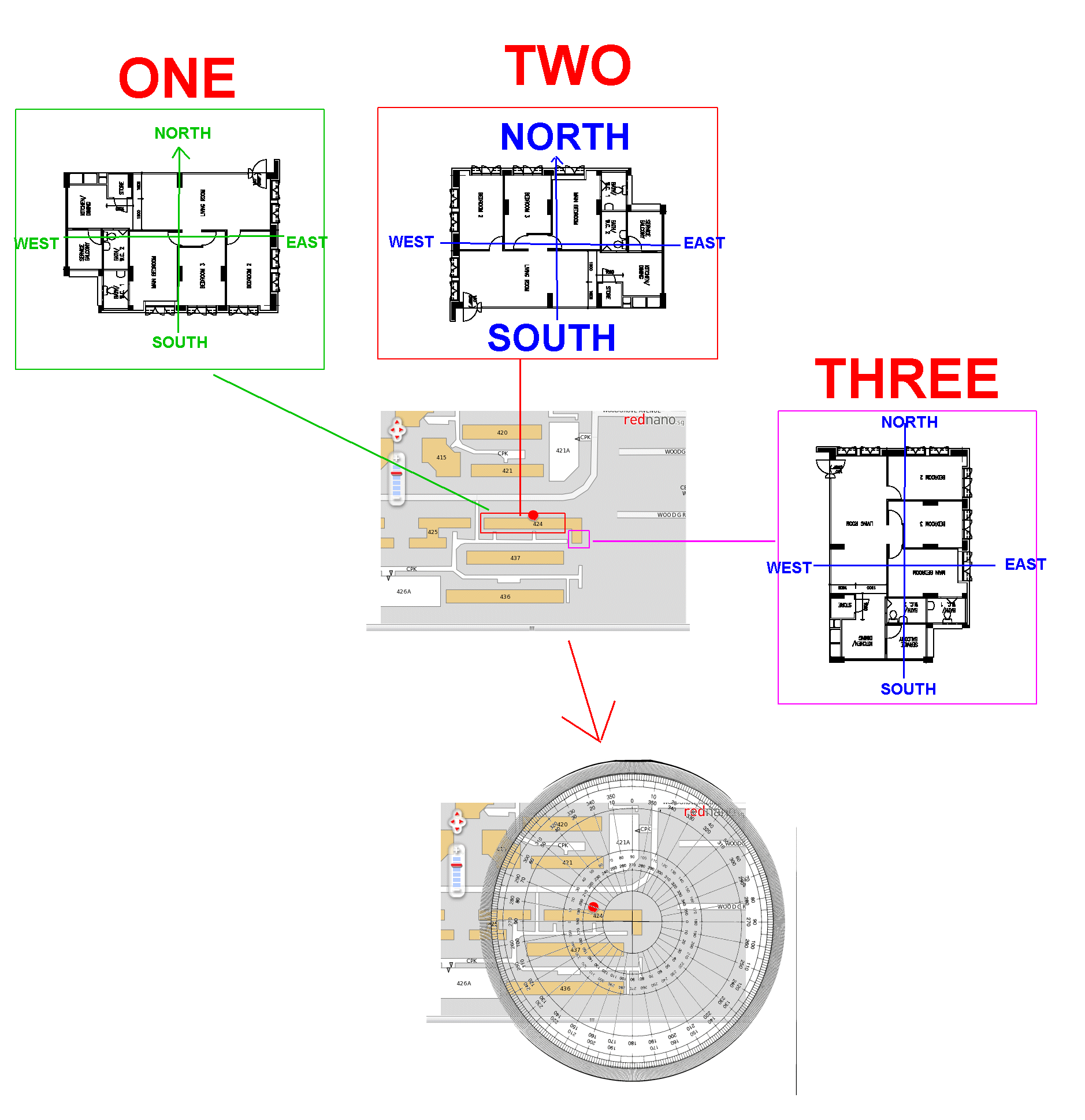

10.2. Please see sample attachment. These are local Singapore maps.

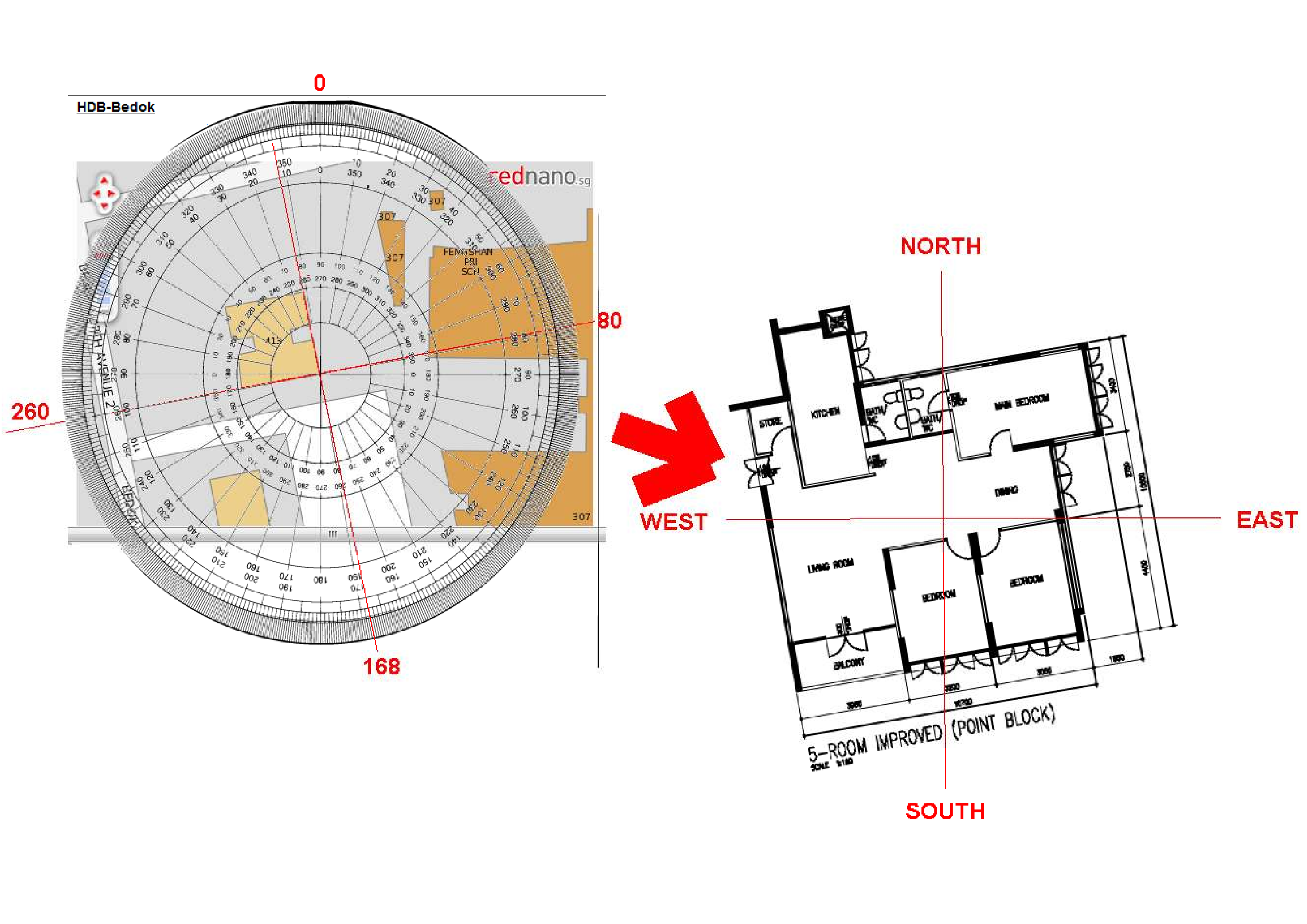

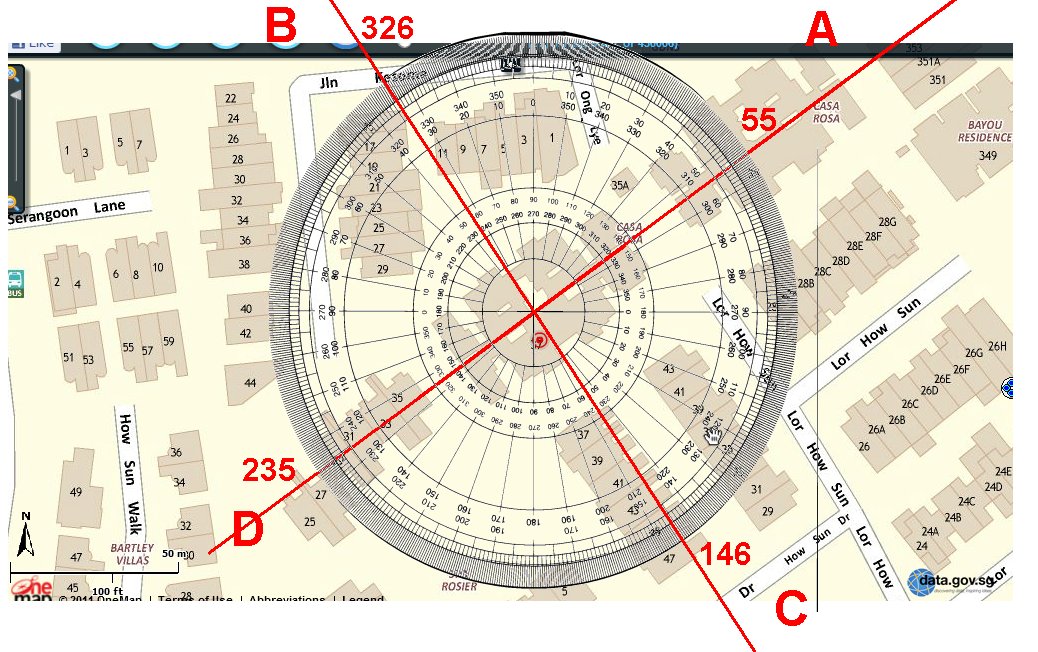

11. I used a protractor. If one examines the illustrations carefully, the protractor has the 0/360 placed at the top or apex of the street-map. And the corresponding 180 degrees at the bottom most of the frame.

12. If you can determine the outline of your home; use the protractor to find the exact direction of that direction.

13. One can even use google maps or your country's local electronic / web-based map.

14. For difficult locations; I use a shielded by thick brass exterior casing. That often used in a ship.

[Cecil Lee]

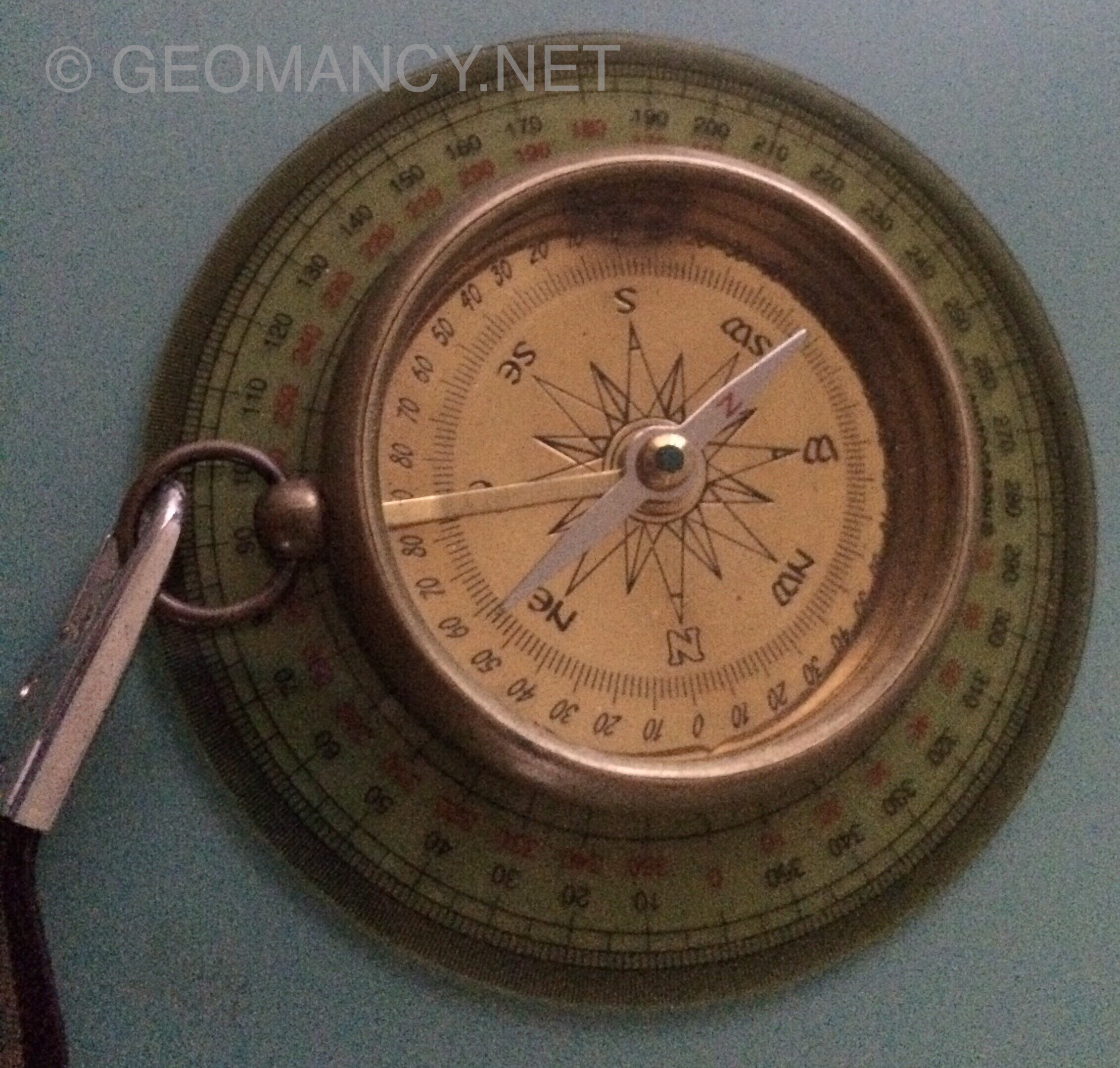

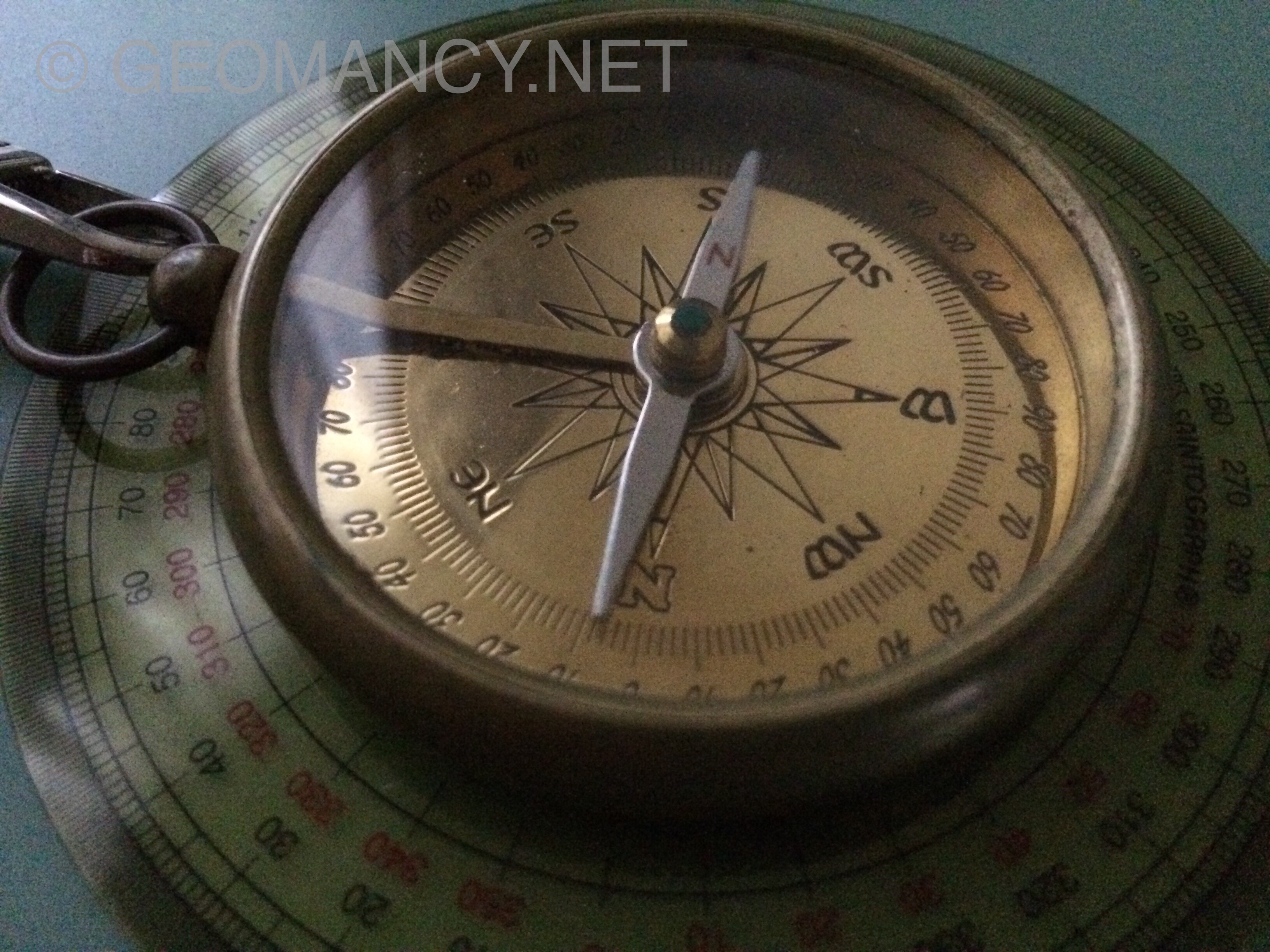

1. My must precise compass is as shown in these photos.

2. I use a solid brass compass with mineral glass cover.

3. I also added a protractor to the base of this heavy and solid brass encased compass; so that I can record the exact compass degree to any 1 degree increments.

4. If one looks closely, the added protractor is already turning yellowish.
5. As I had this compass for more than 18 years.
6. Please don't ask me where I bought it or where to get it. As I happen to pass an antique shop ...... and thinking out of the box; felt that I should get it.

7. This compass served me well especially in high rise complexes. The readings are always precise. A must for a reading done for one of the Big Four Accountancy firms who were looking for a new premises in Marina One...

[Cecil Lee]

If one has the time; please use the Search feature in this forum and ...



Building a new house

Cecil Lee posted a topic in General Help

This link shows aSuunto compass that was "balanced for zone 3". Countries that are around the equator:-- http://forum.geomancy.net/phpforum/article.php?bid=2&fid=6&mid=12503&new=

• May 6, 2015
• 5 replies

•



  Building a new house

  Cecil Lee posted a topic in General Help

  ...A professional compass like theSuunto brand makes compass for different regions. For example: countries in the equator; they sell one for "region 3" that is for Singapore, Malaysia, Thailand and all countries at the equator. For Canada, should be region 1 and most parts of USA is also within regio...

  • May 6, 2015
  • 5 replies
•



  Difference betweenSuunto Compass & Feng Shui?

  Cecil Lee posted a topic in Caricatures: Laughter is good medicine

  ...Suunto only replaces your luck when using their instruments. 2. Feng Shui is about Earth Luck or luck from home or office. 3. What about Geomancy? 3.1 In the past e.g. 1960s to early 1980's; ageomancer cannot survive just by Feng Shui alone. 3.2 Thus in order to survive, a geomancy musthave se...

  • May 10, 2010
  • 1 reply
•



  Difference betweenSuunto Compass & Feng Shui?

  Cecil Lee posted a topic in Caricatures: Laughter is good medicine

  Suunto (the maker of good quality compass instruments) believe in replacing luck - if one uses their instrument. Feng Shui on the other-hand in some ways is like trying to squeeze out as much luck! We can thus say that the common denominator of both is : luck. Fortrue christians, however; the pas...

  • May 10, 2010
  • 1 reply
•



  How accurate is iPhone compass?

  Cecil Lee posted a topic in General Help

  ...My most recentSuunto compass is the model:Suunto KB-14/360 PTI COMPASS ZO for REGION 3. http://forum.geomancy.net/phpforum/article.php?bid=2&fid=6&mid=27494&new 2. However, it has been with more for around 3 to 4 years. Costs around I forgot approximately SGP $260 thereabouts. 3. I bought it at...

  • September 5, 2011
  • 3 replies
•



  Period 8 - E1 vs. SE2/3 houses

  Cecil Lee posted a topic in Flying Star (Xuan Kong) Feng Shui

  ...I mentioned that I had used severalSuunto compasses and for say Singapore, I use a REGION 3. If I am somewhere closer to the tropics; I use another of mySuunto compass meant for REGION 2 etc... If one is say in North America; should still use the MAGNETIC NORTH and not TRUE NORTH, unless you ar...

  • April 12, 2012
  • 10 replies
•



  Iphone 3gS - luopan

  Cecil Lee posted a topic in Feng Shui Tips & Guidelines

  ...the Casio watches with compass or even thoseSuunto , Timex and so many other compass . 5. Perhaps, the most recent is the use of GPS movement to track say a specific line of sight - but GPS is as good as the adjustments made to each staellites circulating around the earth. In fact, the US satelli...

  • April 23, 2010
  • 6 replies
•



  Cheap place to purchaseSuunto compass, Singapore

  Cecil Lee posted a topic in Flying Star (Xuan Kong) Feng Shui

  ...a regular forum user says that his friend found that theSuunto brand compass can be bought cheapest at one or two shops located in Lucky Plaza, Singapore. If you are in Singapore and instead of ordering from the internet, you can perhaps check out Lucky Plaza, at Orchard Road, Singapore. (Next to...

  • March 31, 2004
•



  Iphone 3gS - luopan

  Cecil Lee posted a topic in Feng Shui Tips & Guidelines

  ...I have the latestSuunto solid aluminium compass set for Region 3 (Singapore and the equator). 2. But still; one major flaw is that whenever I am in a building with lots of steel rods for support (look at it this way: all modern high-rise uses re-inforced steel for building support!) 3. Surprisin...

  • April 29, 2010
  • 6 replies
•



  Two most well known Compass makers

  Cecil Lee posted a topic in Feng Shui Tips & Guidelines

  ...Suunto http://www.suunto .com The type I find very useful can be found here:- http://www.geomancy.net/resources/art/art-recommendcompass.htm 2. Silva http://www.silva.se and their Survey Master series Both companies are truly well known. TheSuunto Pilot ================ a. ForSuunto , they have...

  • January 11, 2003
•



  How accurate is iPhone compass?

  Cecil Lee posted a topic in General Help

  ...brandSuunto has land-compass that are grouped into 5 regions. At the equator (or equator) use; the Number is 3. 4. In many of the past forum messages, I had posted especially at the equator, one can use a streetdirectory, super-impose the protractor and match the "facing direction" of a home with...

  • September 4, 2011
  • 3 replies
•



  Recommendation on `Quality Compass

  Cecil Lee posted a topic in Feng Shui Tips & Guidelines

  I personally recommend to those who want to take accurate readings can use the following brands of compass:- Brand A:SUUNTO of Finland Link toSuunto 's Website can be found under: http://www.geomancy.net/fs/recommendcompass.htm Brand B: SILVA of Sweden Models to look at include their: SightMaster m...

  • May 31, 2001
•



  How to use the compass

  Cecil Lee posted a topic in General Help

  ...suunto compass and how to (and other compass properly). 3. A search in this forum will also have articles on how to find the centrepoint of a home, how to superimpose a compass chart on it etc..... Try to use your fingers to do the walking..... SEARCH

  • January 17, 2009
  • 1 reply

[Cecil Lee]

14 minutes ago, Cecil Lee said:

My must precise compass is as shown in these photos.

I use a solid brass compass with mineral glass cover.

I also added a protractor to the base of this heavy and solid brass encased compass; so that I can record the exact compass degree to any 1 degree increments.

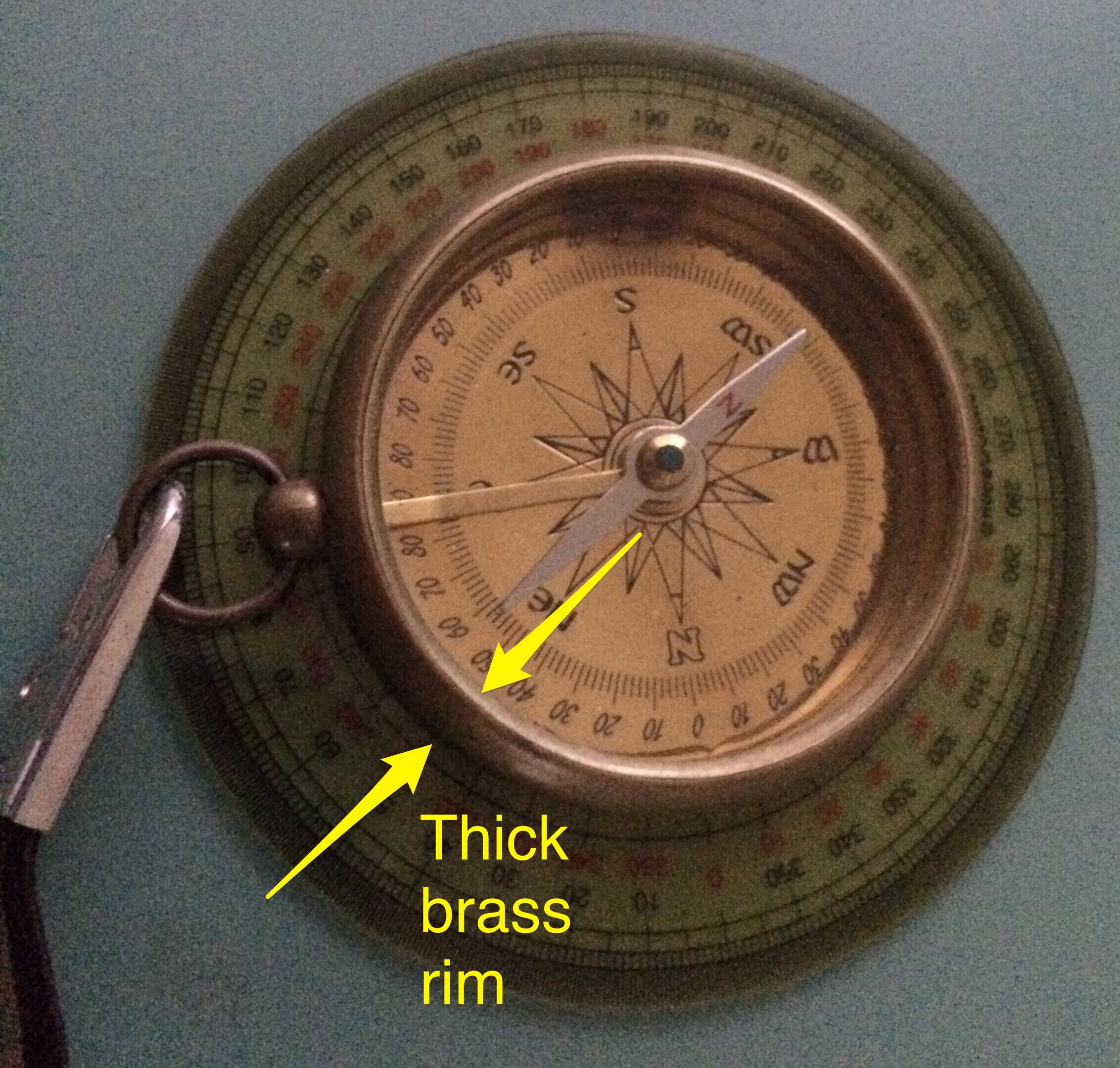

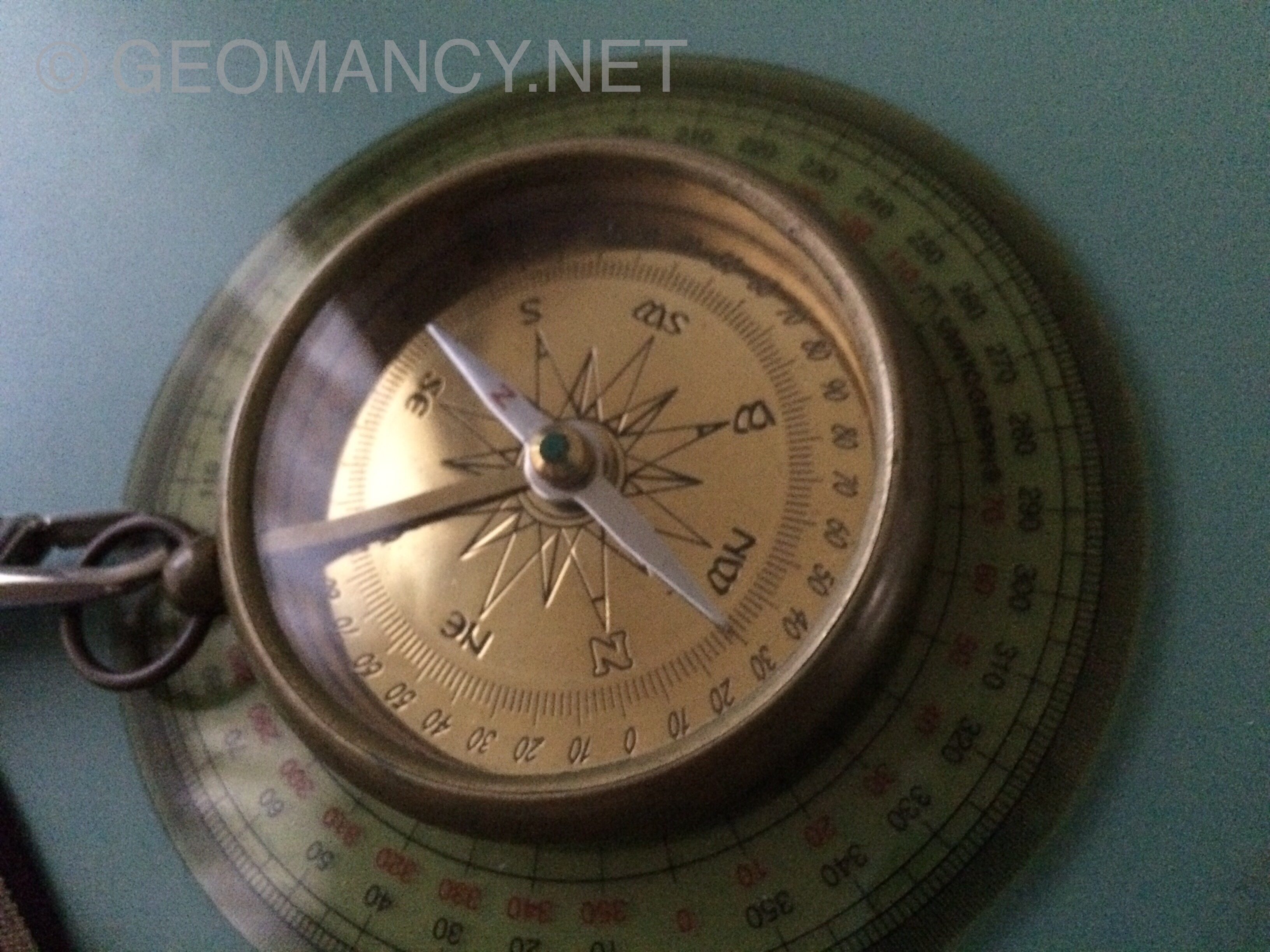

I believe the key success factor is the thick brass rim. See attached.

It is this thick brass rim plus the thick base is what shields the sensitive and vulnerable steel needle from interfering with an accurate reading.



[Cecil Lee]





[Cecil Lee]

This starter kit includes an ebook with techniques on proper compass readings

https://www.geomancy.net/forums/blogs/entry/20-do-it-yourself-diy-finding-a-good-home-kit/

[Cecil Lee]

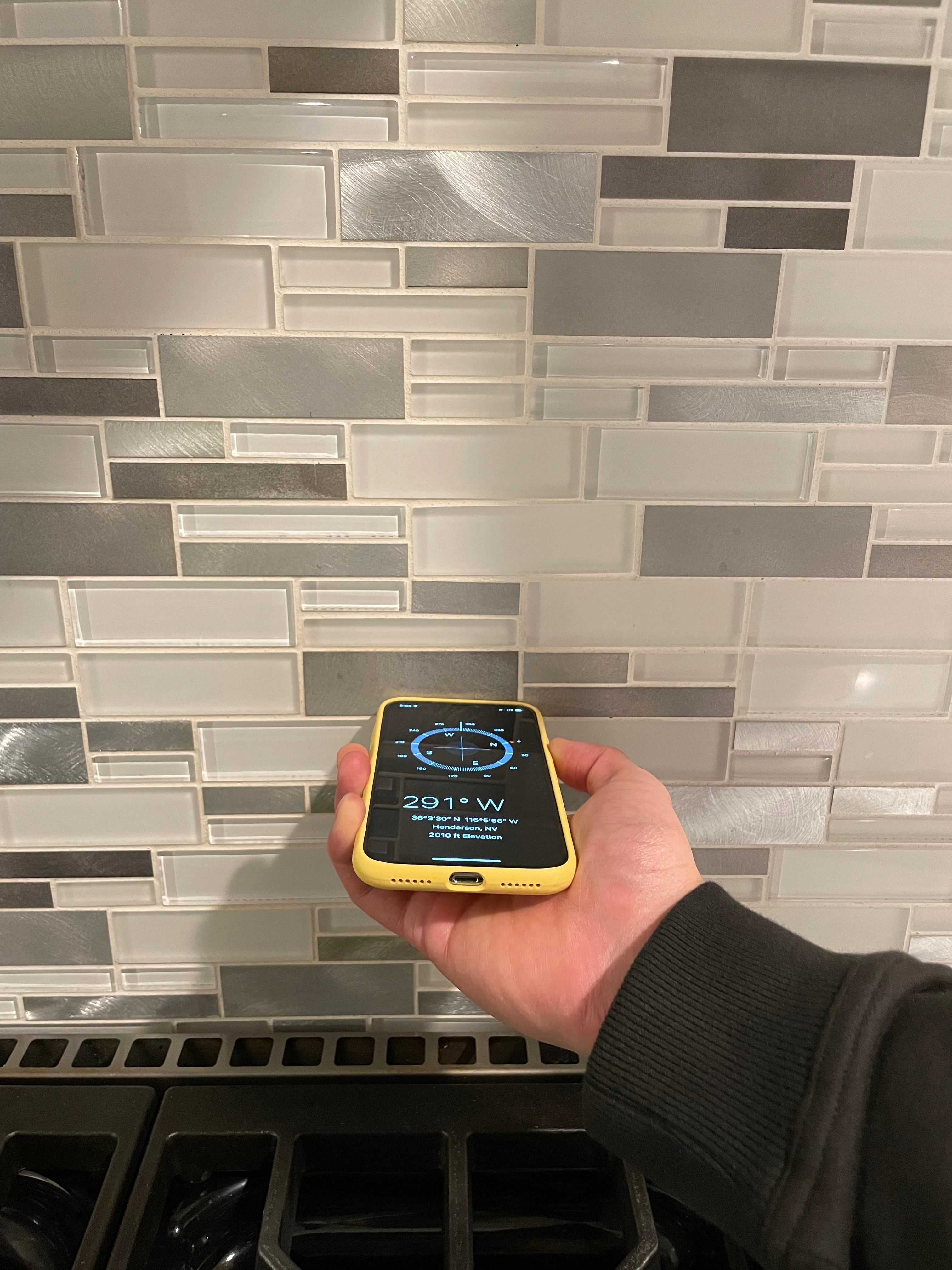

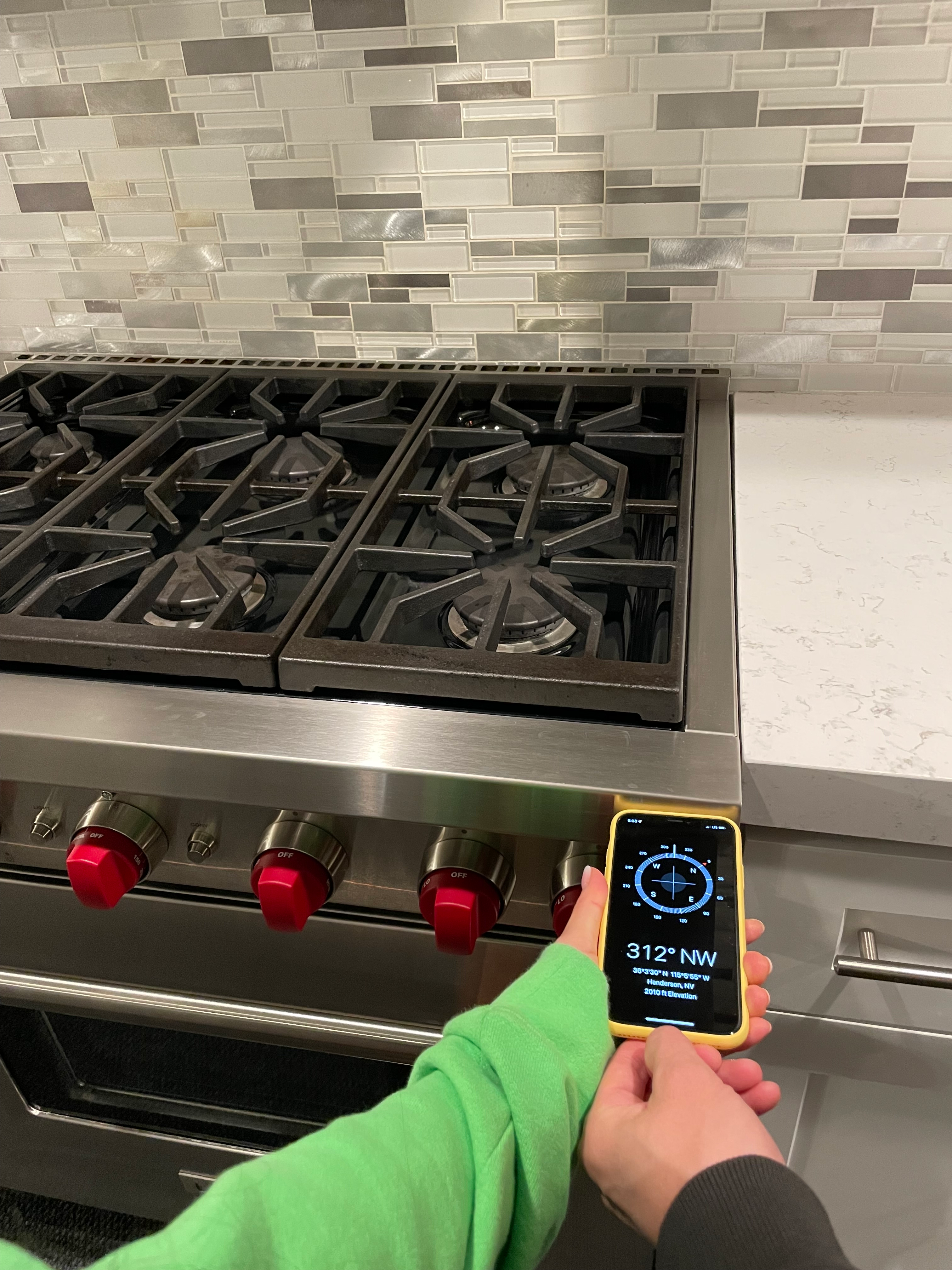

These two photos shows the wrong method to take compass readings of a home:

There are just too many metallic interference. Even unseen and embedded into the walls

[Cecil Lee]

Have a lovely (any brand) smart watch? Do take note of this:

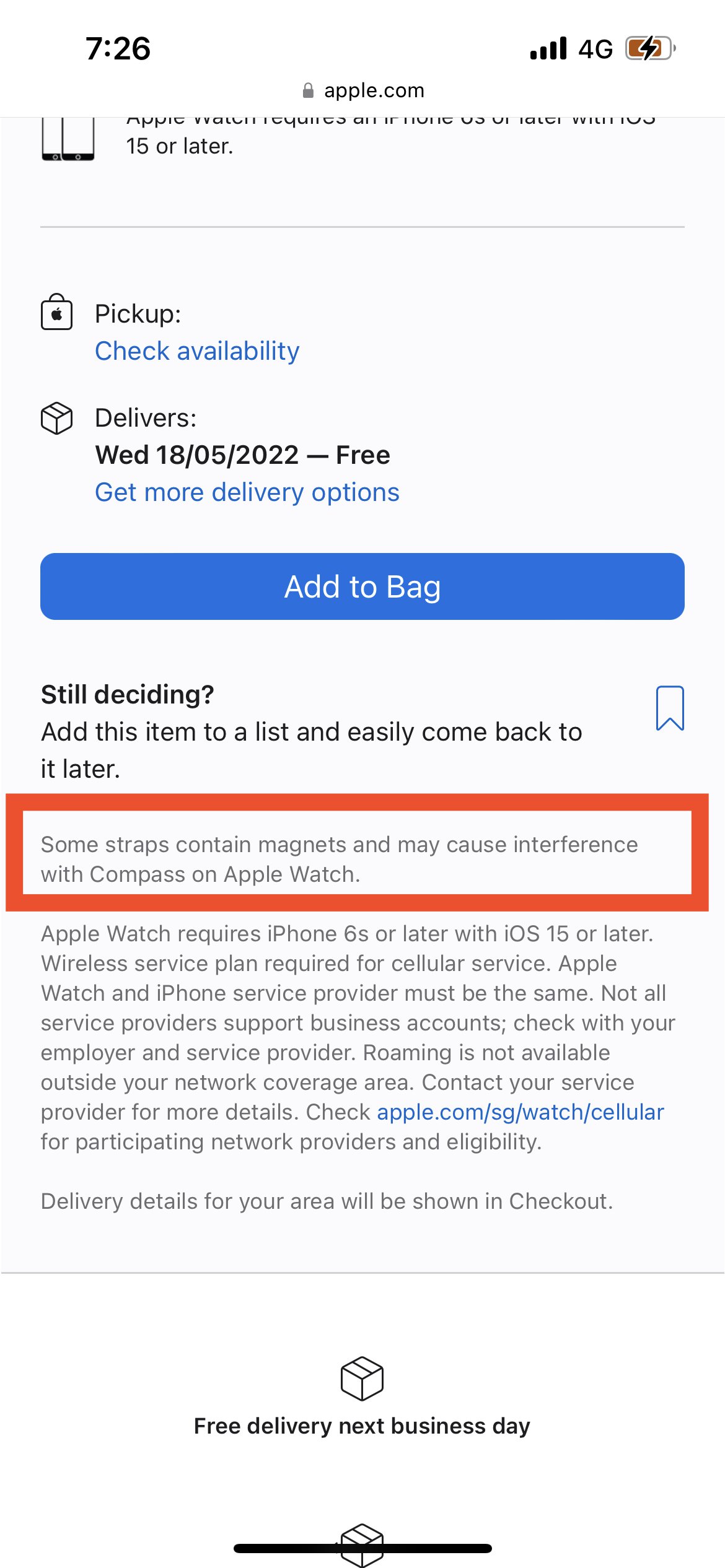

An advisory from Apple…

Some straps contain magnets and may cause interference with Compass on Apple Watch.


[Cecil Lee]

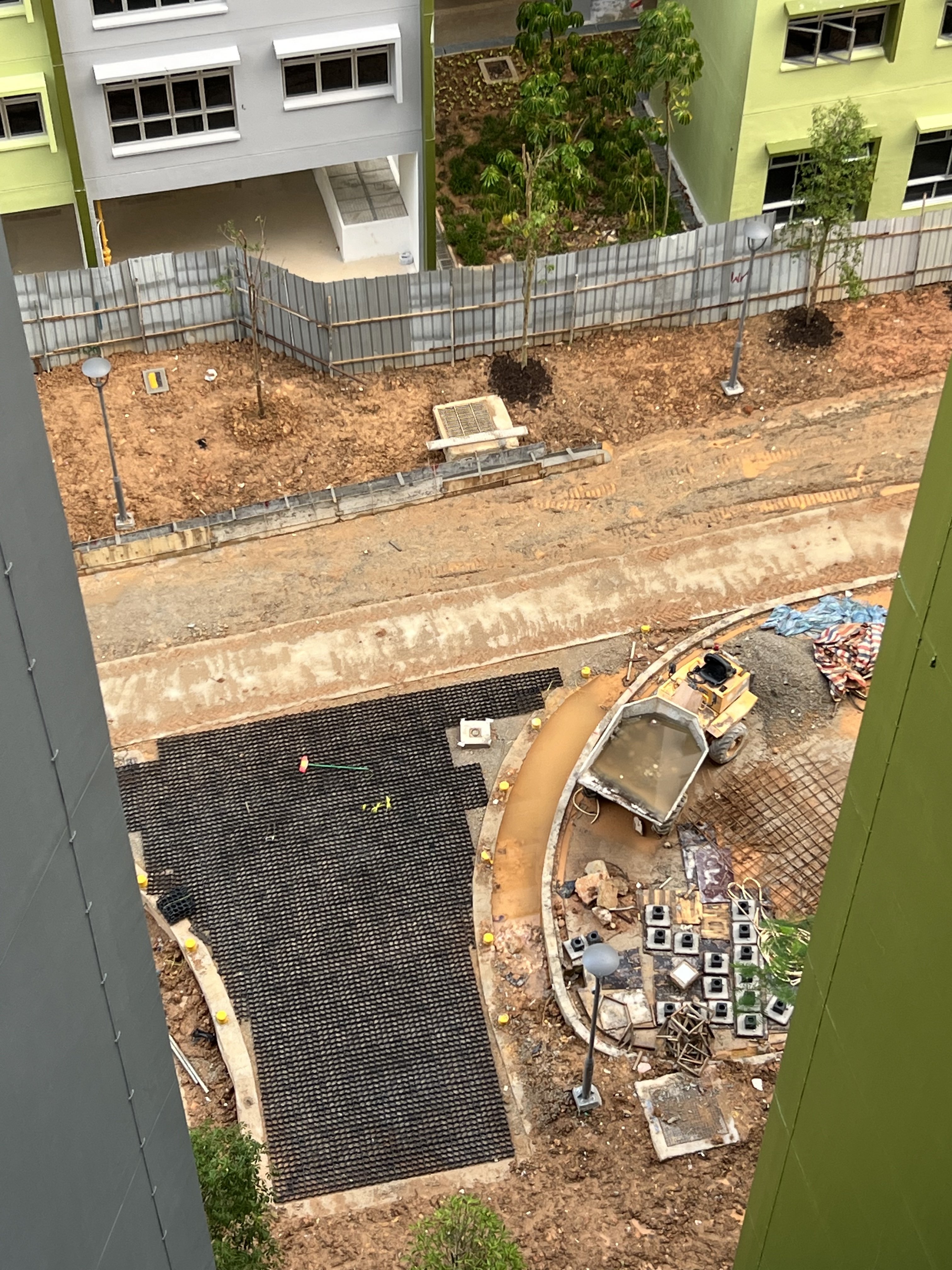

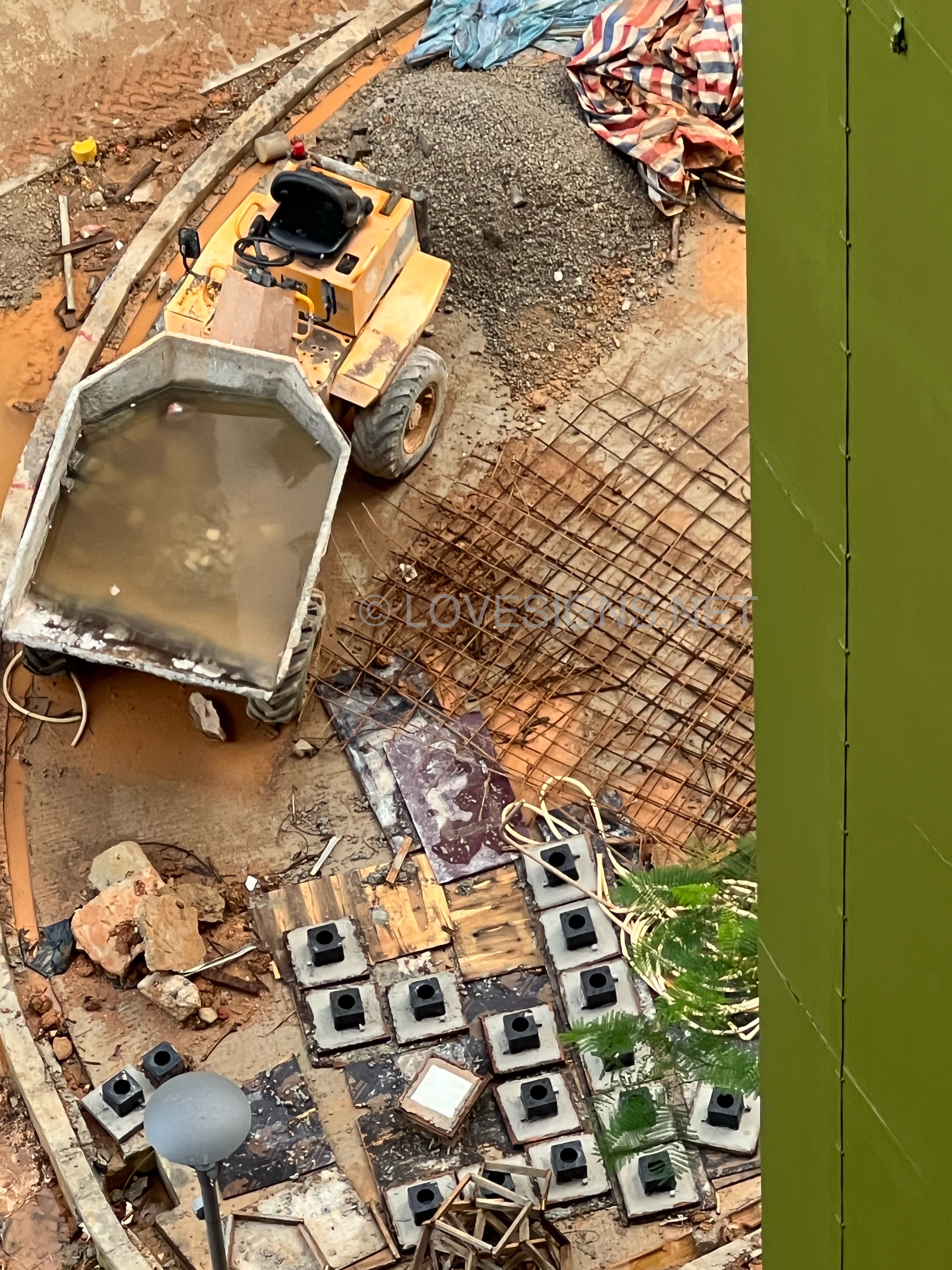

These are some of the materials buried below, service roads and even pavements.

Therefore of one uses a compass above such interference, then compass readings may vary depending on where one stands to take a reading!

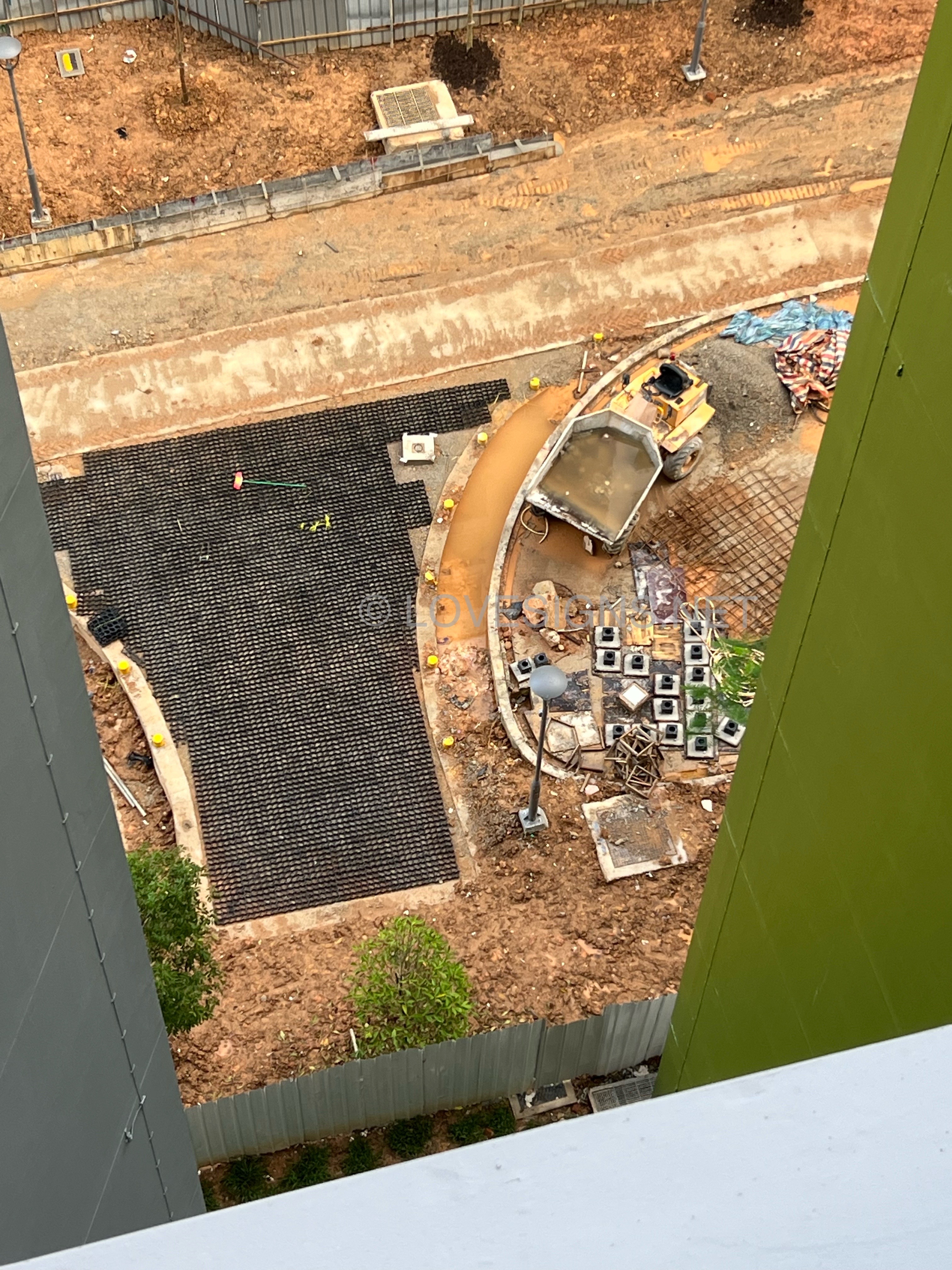

If these mesh are made of iron, they can affect compass readings:

Even standing near a lamp post can also affects one’s readings.

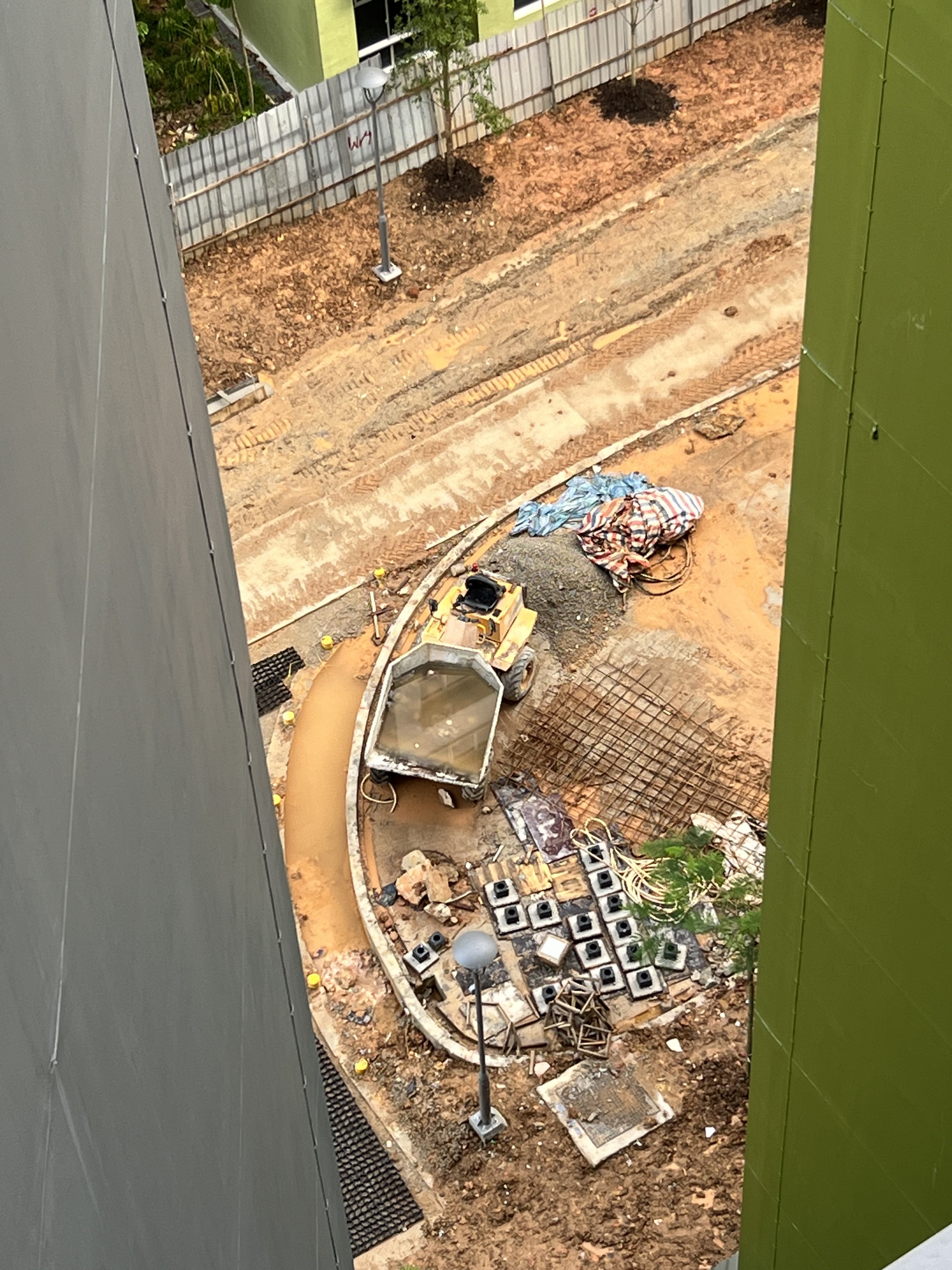

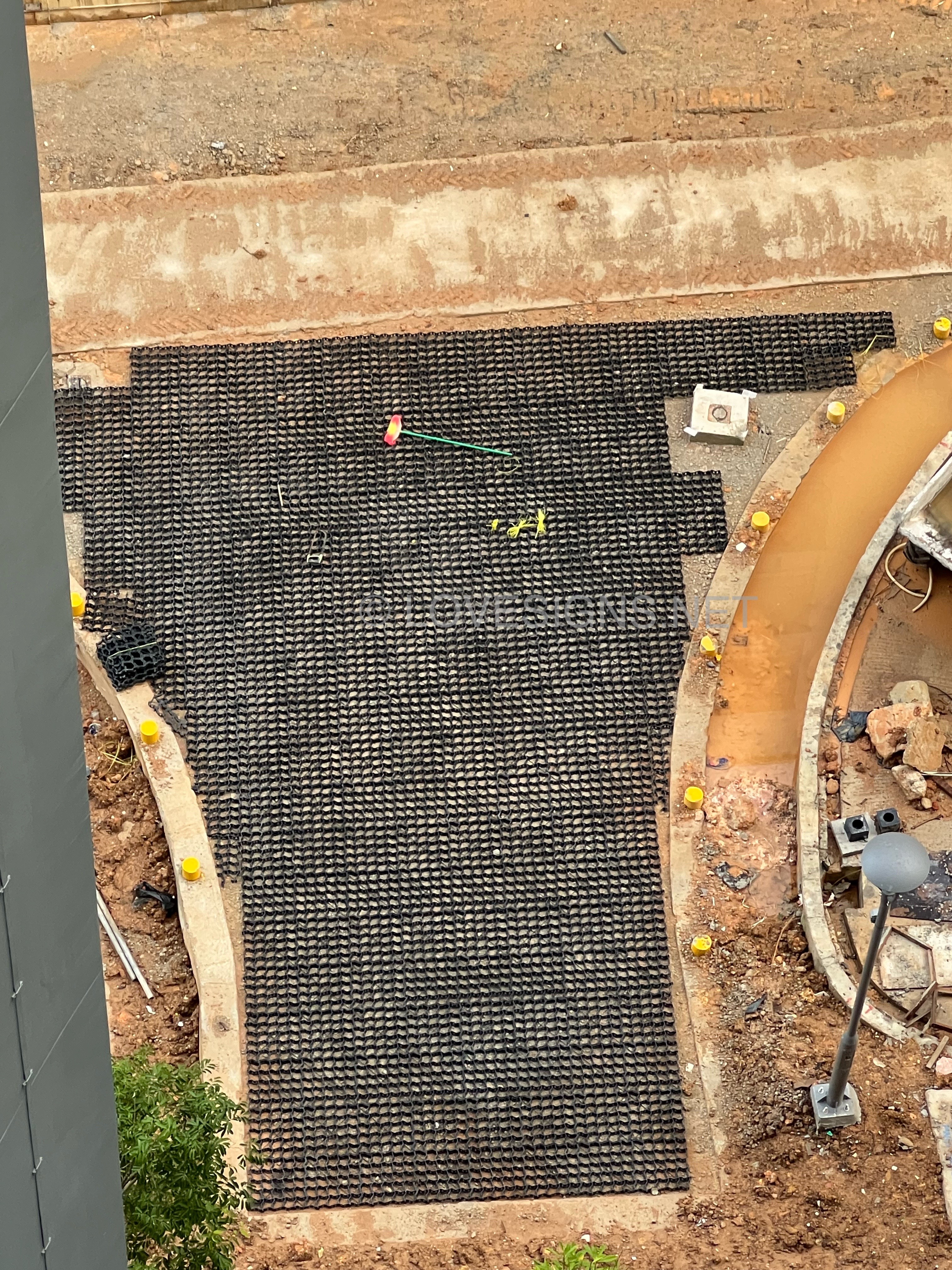

These mesh can make readings inaccurate:

[Cecil Lee]

Related:



[Cecil Lee]

Yes, this unseen element is one of the main reasons why when you take compass readings around concrete structures… it can be affected by steel bars or steel sheets!



[Cecil Lee]

Compass readings differ based on the spot from which they are taken.

Compass readings vary by location due to magnetic declination, which is the angle difference between magnetic north and true north. Understanding how to take accurate readings is essential for effective application of Flying Star Feng Shui

EXTRACT / SAMPLE
